Features
GELGOOG Stick Noodles or Dry Noodles production line adopts vacuum mixing technology and photoelectric control technology, as a symbol of the third generation Hanging noodles production line, representing the advanced level of the domestic industry.
The stick dry noodle production line is equipped with excellent equipment, and the whole process is highly automated, it can be operated, and production continuity is good, the product quality is excellent, the finished product rate is high, and the energy consumption is low.
The stick dry noodle production equipment has a high degree of automation, with only 3 to 4 online production workers; the drying room temperature and humidity can be automatically controlled. Many indicators have met the requirements of energy saving, consumption reduction and environmental protection, especially in terms of complete set range, high degree of automation, few artificial control factors, reasonable process flow, quality of finished products and long shelf life, compared with other domestic The equipment has obvious advantages.
Technical Data
| No. | Equipment Name | Model | Qty | Remark | |
| 1 | Measure and Feeding Machine | GGYSJ10 | 1set |
Pump 0.75kw, Volume 110L, With liquid level display, round tank, stainless steel. |
|
| 2 | Double Shaft and Speed Mixer | GGHMJ200 | 1set | Motor power 6.5/8kw, 150kg/batch, manual opening, food contact parts are made of stainless steel and nylon. | |
| Falling Powder Bucket | 1pc | Stainless steel, produce according real install size. | |||
| 3 | U Type Dough Ripening Machine | GGXHJ200 | 1set |
Power 4kw, 200kg/batch, 1600×800×750 Contact part is stainless steel. |
|
| 4 | Compound and Continuous Dough Rolling Machine | GGMT7-50 | 1set |
Slitting width 350mm, power 5.5kw+5.5kw, 7pairs steel roller, machine is steel structure(frequency control), roller diameter, φ180×2、φ240×1、φ180×2、φ162、φ120 |
|
| 5 | Hanging Stick Supplying Machine | GGGT450 | 1set | Power 1.5kw (frequency control), noodle length adjustable, front and rear uniformity adjustable. | |
| 6 | Noodle Cutting Tidy Machine | GGZJQ800 | 1set | Power 1.1kw | |
| 7 | Hanging Rising Machine | GGSJ350 | 1set | Power is supplied by Hang Stick Supply Machine, carbon steel. | |

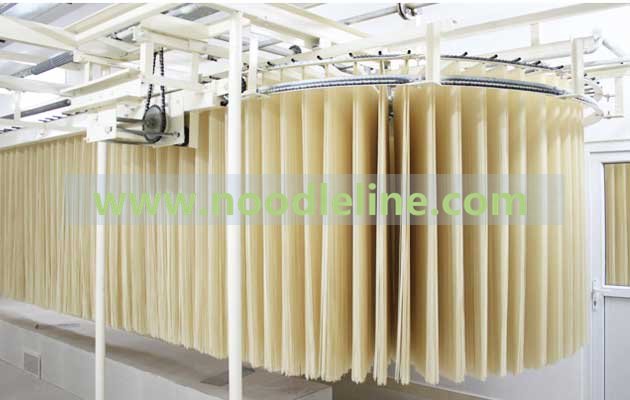

| 8 | Chain Plate Drying Machine | GGPHF30 | 1set |
Main power 3kw (frequency control), industrial fans 0.75 kw ×13 sets, moisture removal fans, 4 kw×1set(or 0.6kw*6sets), 4 rows rod,length 50m, drying time 4hours. Stainless steel noodle hanging rods 4000pcs. |
|
| 9 | Sideway Hang Down Machine | GGXJ350 | 1set | Power 1.5kw(frequency control), carbon steel. | |
| 10 | Automatic Hob Cutting Machine | GGZQM50A | 1set | Noodle length adjustable 120～290mm, power 0.8kw. | |
| 11 | Electric Control System | 1set |
Host to drying room main transmission adopts to frequency control, PLC control, Domestic electrical components, not include cable |
||
| Total | Total Power ~75kw | ||||
